Metalurgický mikroskop Kern OKO 178

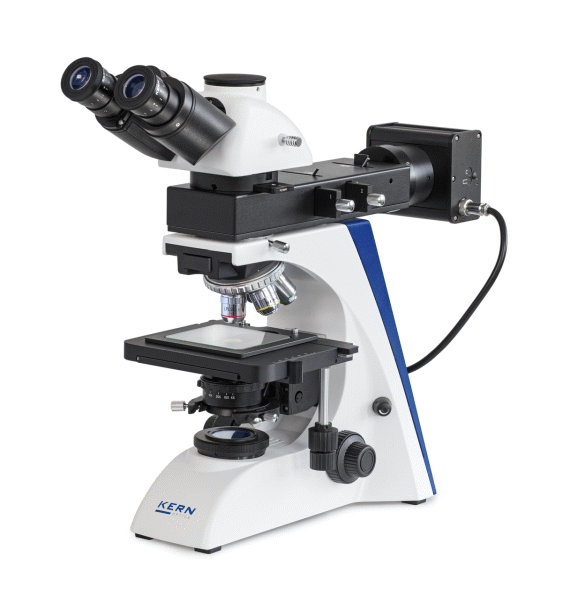

Metallurgical MicroscopeKERN OKO 178,TrinocularEyepiece HWF 10 x / dia. 22mm with anti-fungus, high eye pointIncident light: LED, 5 W, Transmitted light: LED, 5 WThis device is a professional, versatile, metallurgical microscope, which is used in testing metals and analysing surfacesThe KERN OKO is a combi variant of LED incident illumination and LED transmitted illumination. A height-adjustable 1.25 Abbe condenser which can be centred as well as a field diaphragm for complete professional Köhler illumination are part of the standard versionAn open, mechanical angle table is integrated as standardA simple polarising unit (analyser and polariser) is included with delivery.A large selection of accessories, such as, for example, eyepieces and further objectives are available for longer working distancesA protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery.A C-mount adapter is required to connect a cameraScope of application: Metallurgy, material testing, quality assuranceApplications/Samples: Opaque and thick samples, workpieces (surfaces, fold lines, coatings)

Uvedená vyobrazení jsou orientační a mohou podléhat změnám.
